Bypass Box for UPS EVO 4–6 kVA | Single-Phase | Wall-Mount | Screw Terminal

AED1,200.00

External bypass box for UPS EVO 4–6 kVA. Single-phase input/output. Screw terminal connection. Enables seamless maintenance without power interruption.

Availability: In stock
SKU
FGCBYPMM

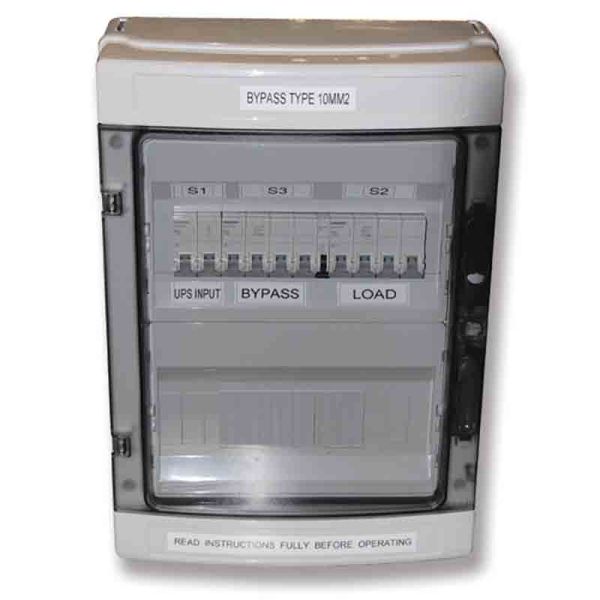

The Bypass Box for UPS EVO 4–6 kVA allows maintenance of your UPS system without disrupting power to the connected load. Designed for single-phase UPS setups, this external unit connects via screw terminal blocks and supports wall-mount installation.

It ensures continuous power delivery while isolating the UPS for inspection, battery replacement, or servicing. Built with a durable ABS enclosure, it's ideal for data centers, industrial control systems, and mission-critical environments.


Key Features

  • Supports UPS EVO models 4–6 kVA (Single-Phase)

  • Manual Maintenance Bypass – Isolate UPS safely without power cut

  • Input/Output Connection: Screw-type terminal blocks

  • Mounting: Wall-mounted installation

  • Enclosure: High-quality ABS housing

  • Phase Configuration: 1Ph+N / 230V


Use Cases

  • Scheduled UPS maintenance

  • Battery swap without load interruption

  • Industrial and IT infrastructure

  • Medical equipment protection


Technical Specifications

Model Compatibility: UPS EVO DSP PLUS 4–6 kVA
Voltage Support: 230Vac (Single-Phase)
Connection Type: Screw terminal block (input/output)
Mounting Type: Wall-mounted
Enclosure: ABS
Bypass Type: Manual external bypass
Application: Maintenance bypass only

Bulk Orders:

For bulk purchases, contact us at info@gepcomtech.com

Datasheet

More Information
Price AED1,200.00
