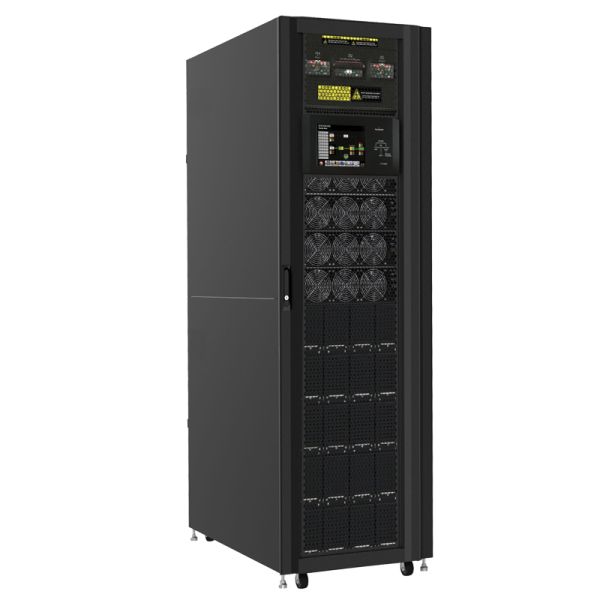

Tecnoware Modular UPS Cabinet 42U – 120kVA, 4 UPS & 20 Battery Slots - Made in Italy

Tecnoware EVO DSP PLUS MODULAR Cabinet – 42U, 120kVA Capacity

Built for high-availability environments, this modular 42U cabinet integrates up to 4 UPS modules (20/30kVA each) and up to 20 battery modules, offering a maximum output of 120kVA. Ideal for data centers and enterprise power continuity setups.

Key Features:

• UPS Slots: Fits up to 4 UPS modules (20kVA or 30kVA)

• Battery Capacity: Supports 20 battery modules (in multiples of 4)

• Power Output: Max 120kVA

• STS (Static Transfer Switch): 120kVA

• Efficiency: Up to 96% in double conversion mode

• Redundancy Support: N+1 / NX configurations

• Hot-Swap System: Safe module replacement without shutdown

Technical Specifications:

• Dimensions: 60 x 110 x 201 cm

• Weight: 274 Kg

• Display: 10" Touchscreen LCD

• Access Design:

  • Front grill door

  • Rear door

  • Removable side panels

• Connections:

  • Input/output connections and disconnectors

  • External battery connections

• Communication Ports:

  • RS-232

  • USB

  • EPO

  • Smart slot for SNMP, RS485, or Dry Contact (optional)

• Software Support: TecnoManager (free download from tecnoware.com)

Bulk Orders:
For bulk purchases, contact us at info@gepcomtech.com

Approximate Delivery Time : 3 Days
