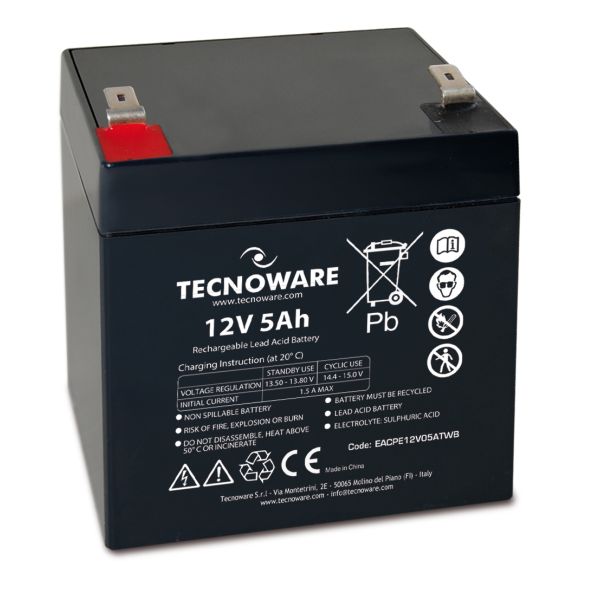

Tecnoware Power Battery 12V 5Ah – Sealed Lead-Acid – Faston 6.3 mm

The Tecnoware Power Battery 12V 5Ah is a compact, sealed lead-acid battery designed for high-reliability backup power. Suitable for UPS systems, emergency power, alarm setups, data processing equipment, and security networks, it ensures consistent energy delivery even during long or deep discharge cycles.

Engineered for performance and safety:

• Sealed, maintenance-free design with ABS container

• Faston 6.3 mm terminals for quick, tool-free connection

• Certified for air, road, rail, and sea transport

• Delivers high cyclic durability and stable voltage regulation

Built for plug-and-play deployment with no installation complexities.

Key Features

• Nominal Voltage: 12V DC

• Capacity: 5Ah

• Terminal Type: Faston 6.3 mm

• No Maintenance: Sealed lead-acid battery

• Application Ready: UPS, alarms, data centers, emergency power

• Transport Safe: Compliant for multi-modal transport

• Cycle Life: Designed for long/deep discharge use

• Charging Time: 6–8 hours (max 1.5A)

Technical Specifications

• Model: Power Battery 12V 5Ah

• Code: EACPE12V05ATWB

• Voltage Range:

  • Standby: 13.50–13.80V at 25°C

  • Cycle: 14.4–15.0V at 25°C

• Max Charging Current: 1.5A

• Initial Charging Current: 1.25A

• Internal Resistance: 26 mΩ (fully charged)

• Max Discharge Current: 75A for 5 seconds

• Charging Time: 6–8 hours

• Container Material: ABS

• Working Temp:

  • Discharge: -15 to 50°C

  • Charge: 0 to 40°C

  • Storage: -15 to 40°C

• Nominal Temp: 25±3°C

• Capacity vs Temp:

  • @ 40°C: 103%

  • @ 25°C: 100%

  • @ 0°C: 86%

Physical Dimensions

• Size (W x H x D): 90 x 101 x 70 mm

• Weight: 1.65 Kg

• Packaging: Single Box
