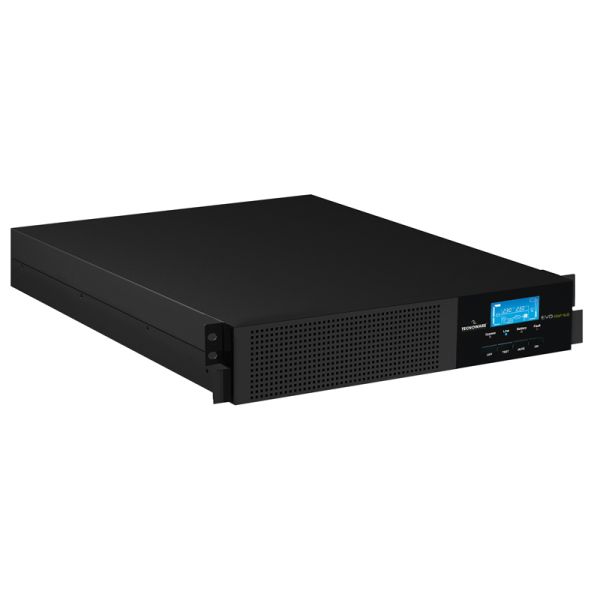

6KVA Rack-mounted online UPS with true double conversion (VFI-SS-111), PF 1, 94% efficiency, 1Ph+N input/output, battery-ready, 2U form factor.
The UPS EVO DSP PLUS Rack Mount 6.0 PF 1 delivers reliable and clean power with full protection against outages, surges, and voltage distortions. This 6KVA (6KW) online UPS operates on VFI double conversion technology, ensuring high power quality and performance for mission-critical environments such as data centers, network infrastructure, and medical applications.
With 94% efficiency, active PFC (0.99), and PF 1, it supports full active power without derating. The 2U rack-mountable form makes it suitable for standard 19” enclosures. Batteries are not included; the system supports external battery boxes for scalable backup.
Key Features:
Power Output: 6KVA / 6KW (PF 1)
On-Line Double Conversion Technology (VFI-SS-111)
Input/Output Voltage: 230V (208V–240V selectable)
Input Voltage Range: 110–300V (load-dependent)
Frequency: 50/60Hz (Selectable)
Efficiency: 94% at full load
Inverter Waveform: Pure Sinewave
LCD Display: Multifunction graphic interface
Compatible with external battery banks (16x 12V batteries)
Communication ports: USB, RS232
Slot for SNMP / MODBUS / Dry Contact (Optional)
Static Bypass & EPO Contact
Designed for rack cabinets (2U height)
Applications:
Local Area Networks (LAN)
Data Centers & Servers
Industrial & Laboratory Equipment
Healthcare Devices (Electromedical)
Telecom & Edge Computing Nodes
Technical Specifications:
| Parameter | Specification |
|---|---|
| Product Code | FGCEDP6MM2RM/00 |
| Technology | On-Line Double Conversion (VFI-SS-111) |
| Cooling | Fan cooled |
| Audible Noise | < 48 dBA @ 1m |
| Dimensions (WxHxD) | 43.8 x 8.8 x 51.5 cm (2U) |
| Weight | 11 Kg (without batteries) |
| Input Voltage Range | 110–300V (load-dependent) |
| Output Voltage | 208V–240V (selectable) |
| Voltage Regulation | ±1% |
| THD (Output) | <3% (linear), <6% (non-linear) |
| Crest Factor | 3:1 |
| Overload (Line Mode) | 110% – 10 min, 130% – 1 min |
| Overload (Battery Mode) | 110% – 30 sec, 130% – 10 sec |
| Battery Support | 16x 12V batteries (external box) |
| Autonomy Extension | Supported via external battery box |
| Charging Time | 6–8 hours (typical) |
| Certifications | CE (IEC EN 62040-1/2/3) |
| Environmental Limits | Temp: 0–55 °C, Humidity: <95% |
Bulk Orders:
For bulk purchases, contact us at info@gepcomtech.com
Approximate Delivery Time : 3 Days
| Price | AED7,750.00 |
|---|
