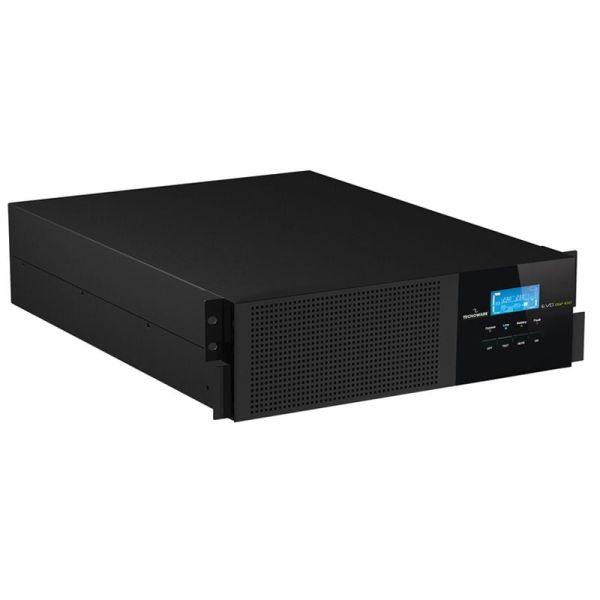

Tecnoware FGCEVDP10MMRM/00I 10KVA Rackmount Online UPS – DSP PLUS | VFI-SS-111 | PF 0.9 | Without Battery - Made in Italy

• Model Code: FGCEVDP10MMRM/00

• UPS Type: Online Double Conversion (VFI-SS-111)

• Form Factor: 19” Rackmount (3U)

• Power Capacity: 10KVA / 9KW

• Power Factor: 0.9

• Efficiency: 94% at full load (IEC 62040-3)

• Transfer Time: 0ms (True Online)

• Battery: Not included – requires external battery box (16x 7.2–9–11Ah)

Input Specifications

• Phases: Single Phase + Neutral (1Ph+N)

• Voltage: 208 / 220 / 230 / 240Vac

• Voltage Range:

  • 176–300Vac (50–100% load)

  • 110–300Vac (up to 50% load)

• Frequency: 50/60 Hz (selectable)

• Input Power Factor: 0.99

Output Specifications

• Output Type: Terminal Block

• Voltage: 208 / 220 / 230 / 240Vac

• Voltage Regulation: ±1% (On-Line & Battery mode)

• Frequency: 50/60 Hz (selectable)

• Frequency Stability: ±0.1 Hz

• Waveform: Pure Sinewave

• THD:

  • <3% (linear load)

  • <6% (non-linear load)

• Crest Factor: 3:1

Overload Protection

Line Mode:

• 110% for 10 minutes

• 130% for 1 minute

• 130% for 1 second

Battery Mode:

• 110% for 30 seconds

• 130% for 10 seconds

• 130% for 1 second

Battery System (External Required)

• Type: Sealed Lead-Acid, Maintenance-Free

• Required Batteries: 16 units (external box)

• Charging Time: 6–8 hours (typical)

• Autonomy: Scalable using external battery modules

Build & Physical

• Dimensions (W x H x D): 43.8 x 13.3 x 58 cm

• Rack Units: 3U (19” compatible)

• Weight: 18 kg

• Noise Level: <48 dBA @ 1m

• Cooling: Smart fan system

• Display: Multifunction Graphic LCD

• Package Includes:

  • 1 x Serial Cable

  • TecnoManager Software

  • 2 x Rack Mount Handles

Software & Communication

• Ports: USB, RS232

• Emergency Power Off (EPO): Yes

• Intelligent Slot: Yes

  • Optional SNMP / MODBUS / Dry Contact cards

• Management Software: TecnoManager (free)

Certifications & Compliance

• CE Certified

• Standards:

  • IEC EN 62040-1 (Low Voltage Directive)

  • IEC EN 62040-2 (EMC)

  • IEC EN 62040-3 (Performance Classification)

Environmental Conditions

• Operating Temperature: 0 to 55°C (Recommended: 20–25°C)

• Humidity: <95% non-condensing

• Max Altitude: 3000 meters

• IP Rating: IP20
