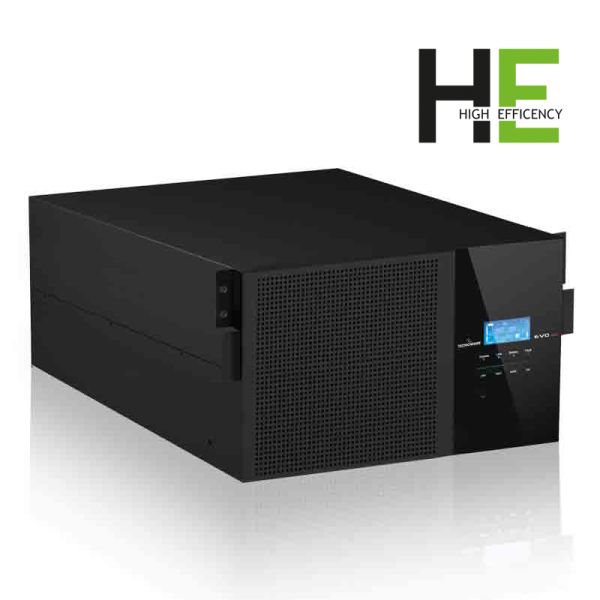

UPS EVO DSP 10KVA TT Rack Mount – PF 0.9 | Online VFI | Without Batteries - Made in Italy

The UPS EVO DSP TT Rack Mount 10.0 delivers reliable 10KVA power with On-Line Double Conversion (VFI-SS-111) technology. This transformerless design ensures clean, stable output with zero transfer time, ideal for critical IT and industrial applications.

Technical Highlights:

• Power: 10KVA / 9KW

• Power Factor: 0.9

• Input/Output Voltage: Three-phase 400Vac

• Frequency: 50/60 Hz

• Efficiency: 94% online mode

• Form Factor: 6U rack-mount (no internal batteries)

• Weight: 42 Kg

Protection and Reliability:

• Full protection against blackout, overvoltage, undervoltage, surges, harmonics, lightning (with upstream arrester), and frequency variations

• Ideal for:

  • Data centers

  • LAN environments

  • Industrial control

  • Electromedical equipment

Features:

• Transformerless On-Line Double Conversion for continuous power quality

• Active PFC circuit (0.99)

• Static bypass for uninterrupted power supply

• Compatibility with generator sets

• Intelligent communication slot for SNMP, Dry Contact, or MODBUS cards

• Multifunction graphic LCD display

• USB and RS232 communication ports for UPS control and programming

• Emergency Power Off (EPO) contact for rapid shutdown

• Supports TecnoManager software for monitoring and configuration

Battery System:

• Batteries not included

• Requires external battery boxes for extended runtime

Physical and Environmental:

• Dimensions: 43.8 x 26.6 x 66.8 cm (W x H x D)

• Weight: 42 Kg

• Operating temperature: 0°C to 55°C (20–25°C recommended)

• Humidity: <95% non-condensing

• IP Rating: IP20

• Certifications: CE compliant (IEC EN 62040 series)

Bulk Orders:
For bulk purchases, contact us at info@gepcomtech.com

Approximate Delivery Time : 3 Days

Datasheet
