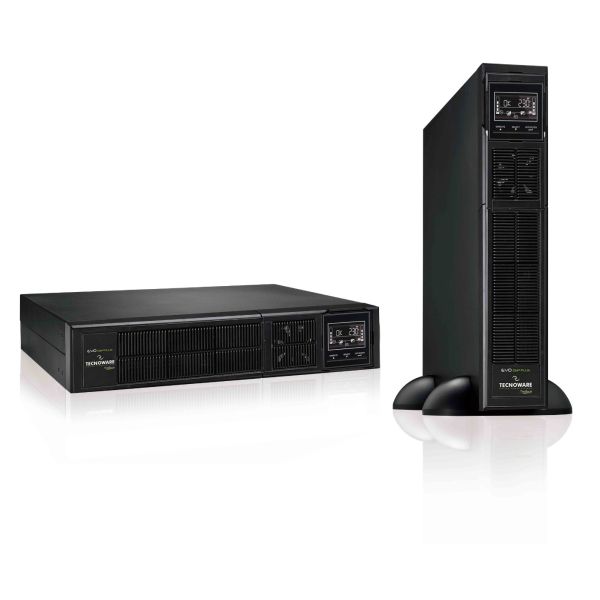

UPS EVO DSP PLUS 1200VA – Online Double Conversion Rack/Tower, 8x IEC, PF 0.9, 94% Efficiency

Reliable Backup Power for High-Sensitivity Systems
The UPS EVO DSP PLUS 1200VA is built for critical IT infrastructure. Featuring Online Double Conversion Technology (VFI-SS-111), it provides uninterrupted clean power with zero transfer time, ideal for servers, medical devices, industrial equipment, and more.

Key Features:

• 1200 VA / 1080W True Capacity
  Power Factor 0.9 ensures high output with minimal loss.

• Online Double Conversion (VFI-SS-111)
  Protects against blackouts, surges, frequency shifts, harmonics, and voltage distortions.

• Convertible Rack/Tower Design
  Mount in 19" server racks (2U) or position vertically as a tower.

• 8 IEC C13 Output Sockets
  Compatible with common IT and networking hardware.

• Hot Swap Battery System
  Swap batteries during operation without downtime.

• Advanced Monitoring & Control
  LCD Display, USB, RS232, EPO port. Optional SNMP/Dry Contact slot for remote monitoring.

• Battery Specs
  2 x 12V 9Ah sealed lead-acid batteries, 10–30 minutes backup time (typical).

• High Compatibility
  Works with generators, thanks to active PFC (0.99 input PF).

• Silent Operation
  Fan-cooled, <45 dBA at 1m.

• Certifications
  CE certified (EN 62040-1, EN 62040-2, EN 62040-3)

Use Cases:

• Data Centers & Server Rooms

• Local Area Networks (LAN)

• Industrial Automation

• Virtualization Servers

• Electro-Medical Devices

• Pellet Stoves, Thermo-fireplaces, Boilers

Technical Highlights:

• Efficiency: 94%

• Input Voltage: 208–240V

• Output Voltage: 208–240V (selectable)

• Inverter Waveform: Pure Sinewave

• Overload Capacity: Up to 130%

• Transfer Time: 0ms (True Online)

• Dimensions: 43.8 x 8.8 x 31 cm (2U)

• Weight: 12 kg

Bulk Orders:
For bulk purchases, contact us at info@gepcomtech.com

Datasheet
