UPS EVO DSP PLUS 2400 VA | Rack/Tower Convertible | Online UPS with IEC Sockets & Batteries

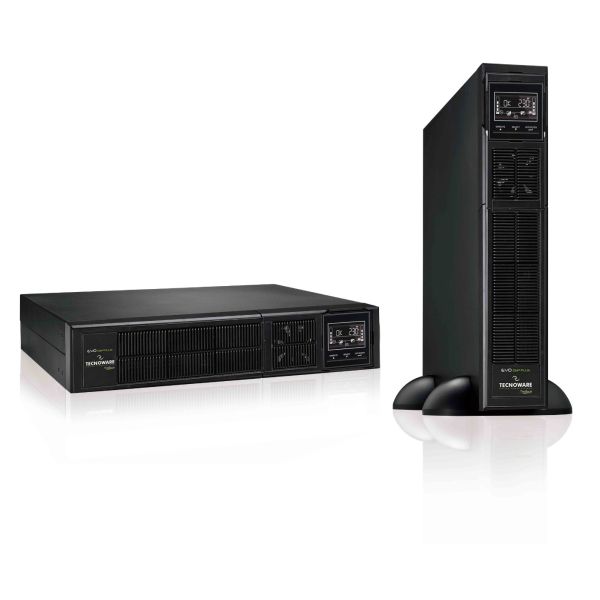

The UPS EVO DSP PLUS 2400 VA Rack/Tower is a high-performance, Online double-conversion UPS built to support critical systems in demanding environments. Designed for rack (2U) or tower installation, it delivers 2,160W active power with a 0.9 power factor, offering precise protection against blackouts, voltage drops, surges, and frequency anomalies.

With 94% efficiency, 8 IEC C13 output ports, and Hot Swap battery support, it ensures continuous operation for your network, data, and industrial infrastructure. It includes 4 x 12V 9Ah batteries delivering 10–30 minutes runtime depending on the load.

Best Suited For:

• Data Centers

• LAN Infrastructure

• Virtual Servers

• Electro-medical Devices

• Pellet Stoves, Boilers, Thermo-fireplaces

• Industry Processes

• Home Heating Systems

Key Features:

• 2,400 VA / 2,160 W Power Output

• Online Double Conversion (VFI-SS-111)

• Rack (2U) or Tower Installation

• Rotatable LCD Display

• 8 x IEC C13 Sockets

• Hot Swap Batteries – No Shutdown Needed

• USB + RS232 Communication Ports

• SNMP / Dry Contact Slot (optional)

• Emergency Power Off (EPO) connector

• Static Bypass Circuit

• Active Power Factor Correction (0.99)

• Generator Compatible

Input Specifications:

• Voltage Range: 110–300 V AC

• Nominal Voltage: 208/220/230/240 V (selectable)

• Frequency: 50/60 Hz (selectable)

• Phases: 1Ph + N

• Power Factor: 0.99

Output Specifications:

• Voltage: 208/220/230/240 V AC

• Power: 2,400 VA / 2,160 W

• Regulation: ±1%

• Waveform: Pure Sinewave

• Frequency Stability: ±0.2 Hz

• THD: <2% (linear), <8% (non-linear)

• Crest Factor: 3:1

• Overload:

  • 110% – audible alert

  • 110–130% – 30 seconds

  • 130% – 100 milliseconds

Battery Details:

• Type: Sealed Lead-Acid (Maintenance-Free)

• Installed Batteries: 4 x 12V 9Ah

• Backup Time: 10–30 minutes (typical)

• Hot Swappable: Yes

• Extended Runtime: Not supported

Physical Specs:

• Format: 2U Rack or Tower

• Dimensions (W x H x D): 43.8 x 8.8 x 41 cm

• Packed Dimensions: 56 x 18 x 50 cm

• Weight: 19 kg

• Noise Level: <45 dBA at 1 meter

• Cooling: Fan cooled

• IP Rating: IP20

Environmental Ratings:

• Operating Temp: 0–55 °C (recommended 20–25 °C)

• Humidity: <95% (non-condensing)

• Max Altitude: 3,000 m

Certifications:

• CE Compliant

• Low Voltage Directive: IEC EN 62040-1

• EMC Directive: IEC EN 62040-2

• UPS Classification: IEC EN 62040-3
