UPS EVO DSP PLUS 3600VA Rack/Tower | Online Double Conversion | 8x C13 + 1x C19 | 10 Min Backup

The UPS EVO DSP PLUS 3600 VA Rack/Tower is a premium Online double-conversion UPS system designed for uninterrupted power protection in professional and industrial environments. With 3,240 W of active power, a 0.9 power factor, and 94% operating efficiency, it secures mission-critical infrastructure from power outages, surges, harmonics, and voltage fluctuations.

Suitable for rack (2U) or tower mounting, this model includes 6 x 12V 9Ah batteries, supporting up to 30 minutes runtime depending on the load. Its Hot Swap battery support, static bypass, and SNMP/Dry Contact compatibility allow for continuous uptime and smart monitoring.

Recommended For:

• Data Centers

• Virtual Servers & Networks

• Industrial Automation

• Electro-medical Equipment

• Pellet Stoves, Boilers, Thermo-fireplaces

• Heating & Environmental Systems

Key Features:

• 3600 VA / 3240 W Output Power

• Online Double Conversion (VFI-SS-111)

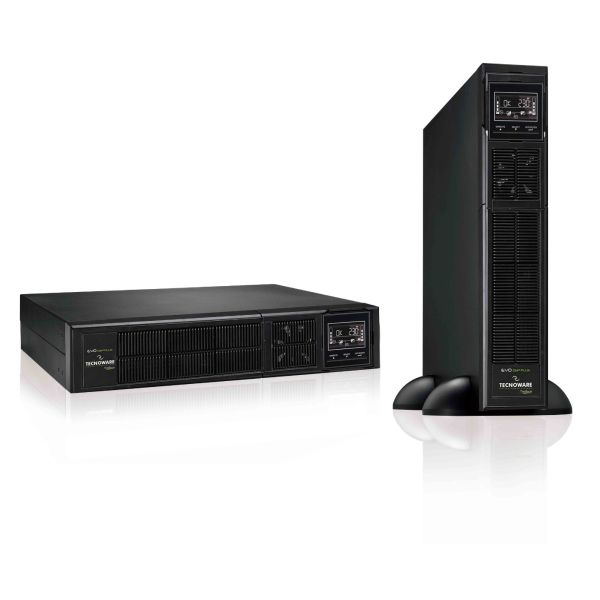

• Convertible Rack 2U / Tower Format

• 94% Energy Efficiency

• 8 x IEC C13 + 1 x IEC C19 Output Sockets

• Hot Swappable 6 x 12V 9Ah Batteries

• External Battery Box Compatibility

• USB + RS232 Communication Ports

• EPO Emergency Connector

• SNMP / Dry Contact Slot (optional)

• Multifunction Graphic LCD Display

• Static Bypass for Fail-Safe Operation

• Active PFC Input (0.99)

• Generator-Compatible UPS

Input Specs:

• Voltage Range: 110–300 V AC

• Nominal Voltage: 208/220/230/240 V (selectable)

• Frequency: 50/60 Hz (selectable)

• Power Factor: 0.99

• Phases: 1Ph + N

Output Specs:

• Nominal Voltage: 208/220/230/240 V AC

• Voltage Regulation: ±1%

• Waveform: Pure Sinewave

• Frequency Stability: ±0.2 Hz

• Crest Factor: 3:1

• THD: <2% (linear), <8% (non-linear)

• Overload Handling:

  • 110% – audible alert

  • 110–130% – 30 seconds

  • 130% – 100 ms

Battery Details:

• Type: Sealed Lead-Acid (Maintenance-Free)

• Count: 6 x 12V 9Ah

• Runtime: 10–30 minutes (typical)

• External Battery Box: Supported (optional)

• Hot Swap Enabled: Yes

Physical & Environmental Specs:

• Format: Rack 2U / Tower

• Dimensions: 43.8 x 8.8 x 63 cm

• Packed Size: 60 x 20 x 76 cm

• Weight: 29 kg

• Noise: <45 dBA at 1 meter

• Cooling: Fan

• Operating Temp: 0–55 °C (ideal 20–25 °C)

• Humidity: <95% (non-condensing)

• Max Altitude: 3,000 m

• IP Rating: IP20

Certifications:

• CE Marked

• Low Voltage Compliance: IEC EN 62040-1

• EMC Compliance: IEC EN 62040-2

• UPS Classification: IEC EN 62040-3

Bulk Orders:

For bulk purchases, contact us at info@gepcomtech.com

Approximate Delivery Time : 3 Days
