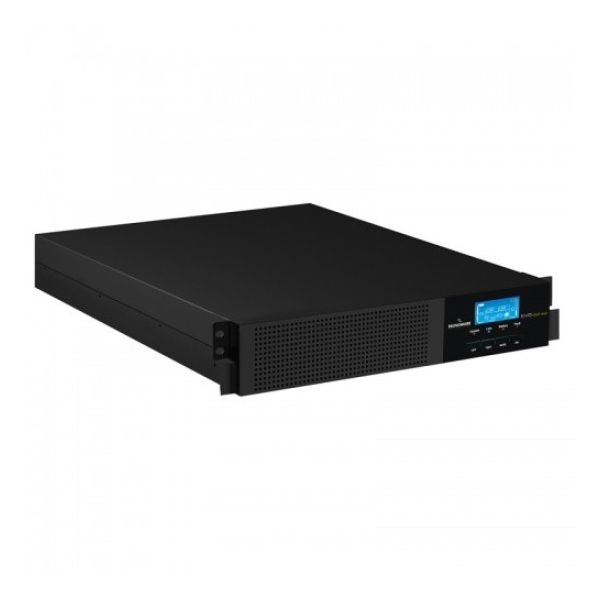

Tecnoware 6KVA Online UPS – EVO DSP MM (FGCEVDP6MMRM/00) | Pure Sinewave | 0ms Transfer | Battery Ready

The Tecnoware EVO DSP MM 6KVA Online UPS (FGCEVDP6MMRM/00) is designed for business-critical operations requiring high reliability, voltage regulation, and instant power transfer.

Built with On-Line Double Conversion technology (VFI-SS-111) and Tecnoware's Super-Fast Charging System, it can recharge connected batteries to 90% capacity in just a few hours. Perfect for small offices, IT closets, and retail networks requiring steady backup during outages or grid fluctuations.

Key Features

• Model: FGCEVDP6MMRM/00

• Capacity: 6KVA

• Power Technology: Online Double Conversion (VFI-SS-111)

• Recharge Speed: Fast charge to 90% within hours

• Ideal Use: SOHO, critical retail loads, small data setups

Input Specifications

• Voltage Support: 208/220/230/240Vac

• Voltage Range:

  • 176–300Vac at 50–100% load

  • 110–300Vac up to 50% load

• Frequency: 50/60 Hz (user-selectable)

Output Specifications

• Voltage Options: 208/220/230/240Vac

• Voltage Regulation: ±2% at 100% linear load (online & battery mode)

• Frequency: 50/60 Hz (selectable)

• THD (Total Harmonic Distortion):

  • <3% (linear load)

  • <6% (non-linear load)

• Transfer Time: 0 ms (seamless)

Battery Details

• Battery Type: Sealed, maintenance-free lead-acid

• Internal Batteries: Not included

• Battery Recharge: Super-Fast Charging enabled

• Extended Backup Support: Compatible with external battery packs

Certifications & Build

• Certifications: CE Compliant

• Inverter Type: Pure sinewave

• Transfer Mode: Static bypass supported

• Cooling: Fan-based for optimal thermal management

Physical Specs & Warranty

• Warranty: 2 Years on UPS (battery warranty may vary by distributor)

• Dimensions: [Standard dimensions not provided—can be matched to model FGCEVDP6MM2/00 if needed]

• Form Factor: Tower

• Weight: [Not specified]

Why Choose This Model?

• Advanced DSP technology

• Clean, regulated power ideal for sensitive electronics

• Ideal for Bangladesh & similar voltage fluctuation-prone regions

• Zero transfer time ensures uninterrupted operation

For bulk orders, contact us at info@gepcomtech.com

Approximate Delivery Time : 3 Days
