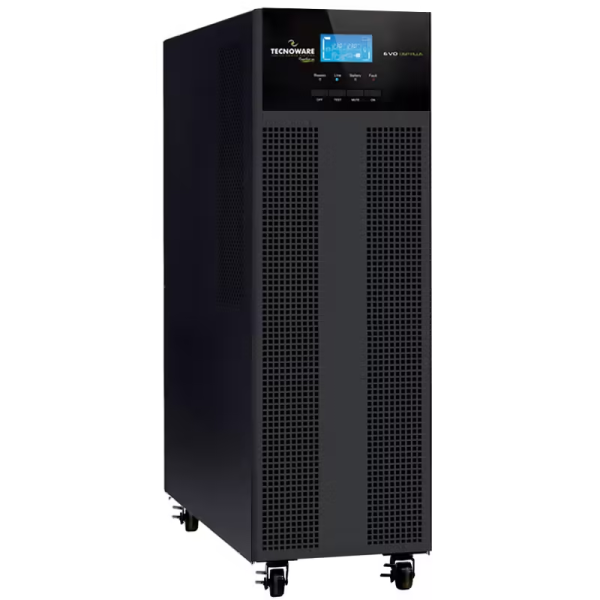

Tecnoware FGCEVDP6503MM 6.5KVA Online Double Conversion Tower UPS (5.8KW)

The Tecnoware FGCEVDP6503MM is a 6.5KVA / 5.8KW Online Double Conversion UPS engineered for mission-critical operations requiring uninterrupted power and advanced protection. It features transformerless VFI-SS-111 technology and Active PFC for high efficiency and reduced harmonics, ensuring robust performance for LANs, data centers, industrial control units, and electromedical devices.

Built in tower form factor with a compact footprint, the unit integrates sinewave output, automatic voltage regulation, and zero transfer time. The intelligent slot supports SNMP, Dry Contact, or MODBUS cards, enabling remote power monitoring and management.

Key Features

• Nominal Power: 6.5KVA / 5.8KW

• Technology: Online Double Conversion (Transformerless) – VFI-SS-111

• Waveform: Pure Sinewave

• Power Factor: 0.9

• Input Voltage Range: 110–300Vac (up to 50% load), 176–300Vac (50–100% load)

• Efficiency: Up to 94%

• Transfer Time: 0 ms (On-Line)

• Output Voltage: 208/220/230/240Vac

• Crest Factor: 3:1

• Overload Capability:

  • Line Mode: 110% (30 min), 130% (5 min), >130% (10 sec)

  • Battery Mode: 110% (3 min), 130% (30 sec), >130% (10 sec)

• USB Port for communication

• Cooling: Fan cooled

• Audible Noise: < 48 dBA at 1m

• Protection: Surge, overvoltage, undervoltage, blackout, frequency fluctuations, harmonics

Battery

• Type: Sealed lead-acid, maintenance-free

• Configuration: 12 internal batteries

• Recharge Time: ~6 hours

• Backup Time: Up to 40 minutes (load-dependent)

Connectivity & Management

• Intelligent Slot: SNMP, Dry Contact, or MODBUS

• Communication Ports: USB

• Compatible with Generator Input

• Static Bypass Support

Physical Specifications

• Form Factor: Tower

• Dimensions (WxHxD): 19 × 57.3 × 36.9 cm

• Packed Dimensions: 33 × 83.5 × 50.5 cm

• Weight: 46 kg

Environmental Parameters

• Operating Temp: 0 to 55°C (20–25°C recommended)

• Humidity: < 95% non-condensing

• Altitude: Up to 3000 m

• IP Rating: IP20

Certifications

• CE Compliant

• Standards:

  • Low Voltage Directive: IEC EN 62040-1

  • EMC Directive: IEC EN 62040-2

  • UPS Classification: IEC EN 62040-3

Recommended For

• LAN and IT Infrastructure

• Surveillance and Industrial Equipment

• Data Centers

• Electromedical Devices

• Telecom Cabinets

• Small Server Rooms
