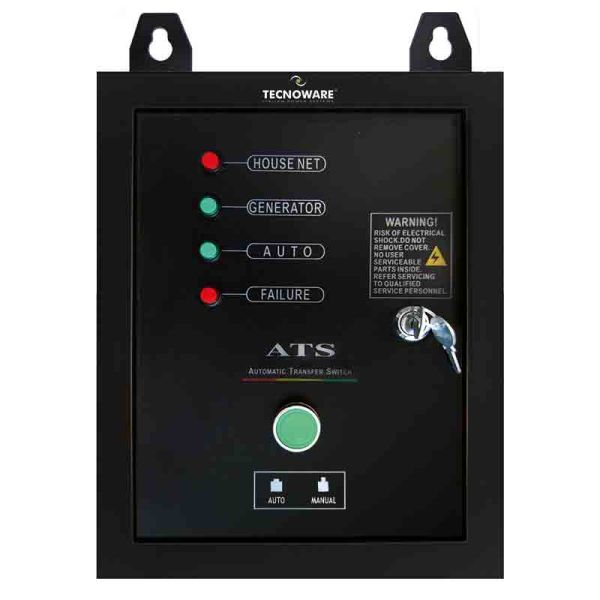

ATS panel for gasoline generators with automatic and manual start functions. Supports 4200VA–9200VA, integrated battery charger, 45A max current, and full grid-to-generator automation.
This ATS (Automatic Transfer Switch) is designed for gasoline generators ranging from 4200VA to 9200VA with electrical/automatic start systems. It ensures seamless power continuity by automatically starting the generator when a power outage occurs and switching back to grid power when restored.
The ATS features a built-in battery charger, manual/automatic operation selector, and real-time status indicators for generator and grid connectivity. It also keeps the generator’s battery charged during standby mode, ensuring it’s always ready.
Key Features:
Compatible with 4200VA and 9200VA gasoline generators
Automatic or manual start selector
LED indicators: mains presence, generator active, auto/manual mode
Integrated generator battery charger
Easy interface connector (2m cable included)
Built-in terminal block for I/O connections
How It Works:
Monitors grid power and battery status
Auto-starts the generator during a power failure
Transfers load from grid to generator
Reverts to grid supply when restored and stops the generator
Keeps generator battery charged during grid operation
Technical Specifications:
Model Code: FGEATS9200
Voltage: 230 Vac
Frequency: 50 Hz
Max Current: 45A
Dimensions: 25 x 32 x 14 cm
Weight: 4 Kg
Interface: Generator connector with 2m cable
Operating Temperature: -5°C to 45°C
Humidity: < 95% (non-condensing)
Bulk Orders:
For bulk purchases, contact us at info@gepcomtech.com
Approximate Delivery Time : 3 Days
| Price | AED825.00 |
|---|
