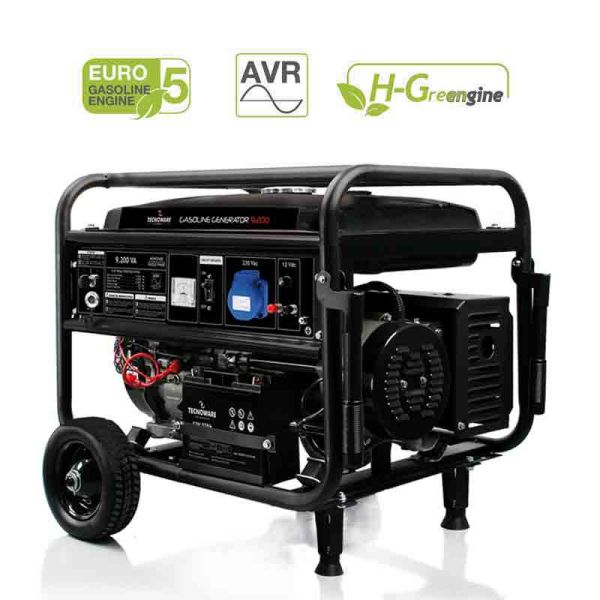

9200VA Gasoline Generator with Electric Start & ATS Compatibility – 230V Single Phase

The 9200VA Gasoline Generator delivers high-performance backup power for both commercial and residential applications. Equipped with a 4-stroke petrol engine, this unit offers a peak output of 9200 VA and stable voltage supply through its AVR (Automatic Voltage Regulator) system.

Start the generator manually with a pull cord, electrically via key, or automatically via an optional ATS panel (sold separately). Designed for user convenience and portability, it includes wheels, hand rails, and a 25L fuel tank for extended runtime.

Key Features:

• Rated Power: 6000 W (Active) / 9200 VA (Reactive)

• Engine: 420cc OHV 4-stroke petrol engine (Euro 5 compliant)

• Start Options: Electric key start, pull cord, ATS auto-start ready

• Fuel Tank: 25 liters – long-lasting operation

• Sockets: 1x IEC 309 32A + 12V DC 8.3A output

• Portability: Heavy-duty wheels and foldable handles

• Noise Level: 74–78 dBA @ 7m

• ATS Ready: Compatible with FGEATS9200

Technical Specifications:

• Product Code: FGE9200EA

• Voltage/Frequency: 230V / 50Hz

• Power Factor: 0.7

• Rated Speed: 3000 RPM

• Voltage Regulation: AVR

• Engine Model: TW190F

• Battery: 12V 17Ah

• Lubrication Oil Capacity: 1.1L SAE 10W-30

• Dimensions (W x H x D): 52.5 x 54.5 x 69.5 cm

• Weight: 85 Kg

• Certifications: CE Compliant

• Emissions: Euro 5 Standard

Applications:

• Backup power for offices, homes, and commercial sites

• Ideal for telecom, medical equipment, lighting, and security systems

• Compatible with ATS panel for fully automated operation

Bulk Orders:

For bulk purchases, contact us at info@gepcomtech.com

Approximate Delivery Time : 3 Days
