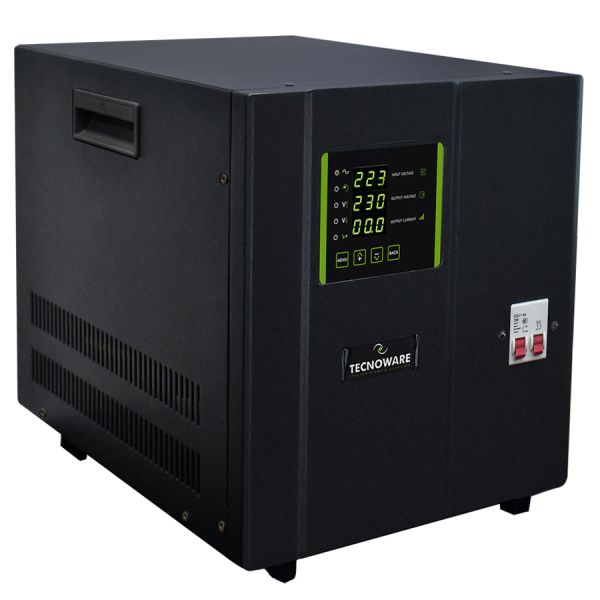

7.5KVA Servo-Assisted Voltage Stabilizer – Microprocessor Controlled, Single Phase

The 7.5KVA Servo-Assisted Voltage Stabilizer ensures stable and uninterrupted power with a microprocessor-controlled design and servo-assisted regulation. Designed for sensitive electronic equipment, it delivers ±1% output voltage stability and a pure sine wave output, without introducing harmonic distortions.

This stabilizer provides optimal protection for home, office, industrial, and medical equipment, with a wide input voltage range (160V–270V) and overload protection. It handles 100–125% loads for 30 seconds and features an audible alarm for enhanced safety.

Key Features:

• Rated Power: 7.5KVA / 6KW

• Output Accuracy: ±1%

• Technology: Servo-assisted, microprocessor controlled

• Waveform: Pure sinewave

• Overload Capacity: Up to 125% with alarms

• Efficiency: >97%

• Voltage Regulation Speed: 12 mSec/Volt

• Output Voltage: Selectable (220V / 230V / 240V)

• Input Range: 160–270V

Applications:

• Medical and diagnostic equipment

• Office and commercial electronics

• Industrial control panels

• Audio-video systems

• Home backup systems

Technical Specifications:

• Model Code: FSTESM7K5M

• Input Voltage: 220/230/240V selectable

• Frequency: 50/60Hz

• Power Factor: 0.8

• Phases: 1Ph + N

• Dimensions (W×H×D): 30 × 34 × 40 cm

• Package Size: 36 × 50 × 50 cm

• Weight: 24 Kg

• Protection: Overload, short circuit

• Environment:

  • Temp: 0–55°C

  • Humidity: <95% (non-condensing)

  • Altitude: Up to 3000 m

• IP Rating: IP20

• Certifications: CE

Bulk Orders:

For bulk purchases, contact us at info@gepcomtech.com

Approximate Delivery Time : 3 Days
