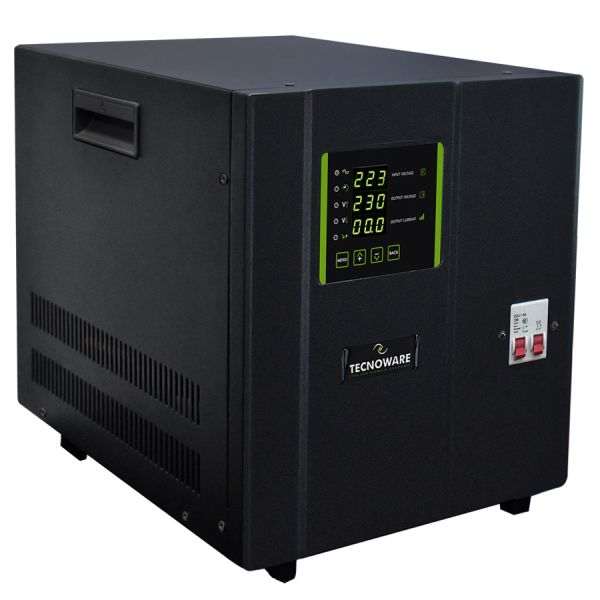

10KVA Servo-Assisted Voltage Stabilizer – Microprocessor Controlled, Single Phase

The 10KVA Servo-Assisted Voltage Stabilizer is a high-precision electronic voltage regulator designed for sensitive and high-performance electrical systems. It uses servo-assisted technology controlled by a microprocessor, ensuring fast and accurate voltage regulation within ±1% output stability.

This unit delivers a pure sinewave output and is designed to handle voltage fluctuations without introducing harmonic distortions. With a wide input voltage range of 160V–270V, and overload protection up to 125%, it's ideal for offices, medical setups, industrial machinery, and home appliances that demand stable power.

Key Features:

• Rated Power: 10KVA / 8KW

• Output Voltage Stability: ±1%

• Servo-Assisted Microprocessor Control

• Pure Sinewave Output

• High Efficiency >97%

• Fast Regulation: 12 mSec/Volt

• Overload Protection with alarm

• Selectable Output Voltage: 220V / 230V / 240V

Applications:

• Medical and Laboratory Equipment

• Commercial Electronics and Appliances

• Home Backup Power

• Industrial Machinery

• Server Rooms and Networking Equipment

Technical Specifications:

• Model Code: FSTESM10KM

• Input Voltage Range: 160–270V

• Frequency: 50/60 Hz

• Phase: Single-phase (1Ph+N)

• Power Factor: 0.8

• Dimensions: 30 × 34 × 40 cm

• Packed Dimensions: 36 × 50 × 50 cm

• Weight: 36 Kg

• Overload Capacity:

  • 100–125% for 30 sec

  • 125% for 100 ms

• Environmental Conditions:

  • Temperature: 0–55 °C

  • Humidity: < 95% non-condensing

  • Altitude: ≤ 3000 m

• IP Rating: IP20

• Certifications: CE
