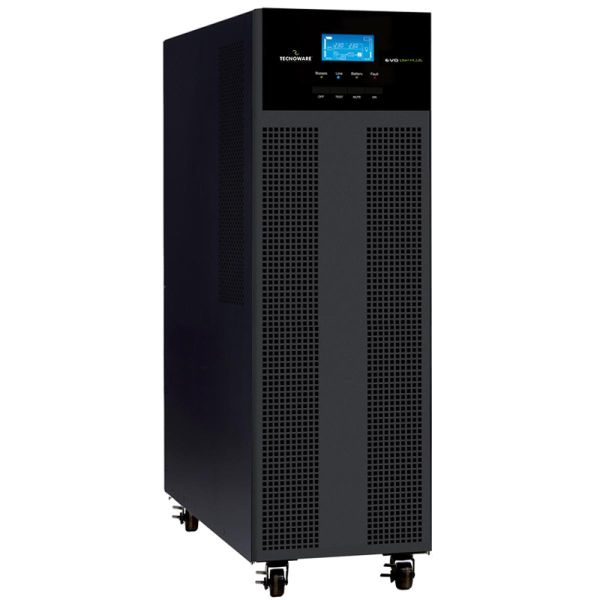

Tecnoware EVO DSP PLUS 10KVA Online UPS (PF 0.9) – FGCEVDP10MM2/00

The Tecnoware EVO DSP PLUS 10.0 MM HE is a robust 10KVA Online UPS with 9KW active power and 0.9 power factor, delivering advanced power protection using DSP-controlled On-Line Double Conversion technology (VFI-SS-111).

This model ensures 94% efficiency, zero transfer time, and compatibility with external battery banks. Designed for mission-critical environments like data centers, medical labs, and industrial networks, it includes USB and RS232 ports, an LCD display, and supports optional SNMP, MODBUS, or Dry Contact cards for remote management and monitoring.

Key Features

• Rated Power: 10 KVA / 9 KW

• Power Factor: 0.9

• Technology: On-Line Double Conversion (VFI-SS-111)

• Efficiency: 94% (full load, double conversion mode)

• Input Voltage Range:

  • 176–300Vac (at 50–100% load)

  • 110–300Vac (up to 50% load)

• Output Voltage: 208/220/230/240Vac

• Inverter Waveform: Pure Sinewave

• Transfer Time: 0 ms

• Frequency: 50/60 Hz (selectable)

• Crest Factor: 3:1

• THD:

  • <3% (linear load)

  • <5% (non-linear load)

• Overload Protection:

  • Line Mode: 110% for 30 min, 130% for 5 min, >130% for 10 sec

  • Battery Mode: 110% for 3 min, 130% for 30 sec, >130% for 10 sec

Battery Support

• Battery Type: Sealed, maintenance-free lead acid

• Internal Batteries: Not included

• External Support: Ready to connect 16x 7.2Ah–11Ah batteries

• Extended Backup: Optional external battery boxes supported

Monitoring & Control

• Display: Multifunction Graphic LCD

• Communication: USB and RS232 ports

• EPO Contact: Emergency power-off interface

• Software: Free TecnoManager UPS management tool

• Expansion Slot: Supports SNMP, MODBUS, or Dry Contact cards (optional)

Physical Specs

• UPS Dimensions (WxHxD): 19 × 68.8 × 44.2 cm

• Package Dimensions (WxHxD): 32 × 92.2 × 58.7 cm

• Weight: 23 kg

• Cooling: Fan cooled

• Audible Noise: < 58 dBA @ 1 meter

Environment & Compliance

• Operating Temp: 0°C to 55°C (recommended: 20–25°C)

• Humidity: < 95% RH (non-condensing)

• Altitude Limit: 3000 m

• IP Rating: IP20

• Certifications:

  • CE Certified

  • IEC EN 62040-1 (Low Voltage Directive)

  • IEC EN 62040-2 (EMC Directive)

  • IEC EN 62040-3 (UPS classification)

Applications

• Data Centers

• Industrial Automation

• Laboratory and Medical Equipment

• Server Rooms

• Surveillance Systems

For bulk orders, contact us at info@gepcomtech.com

Approximate Delivery Time : 3 Days
