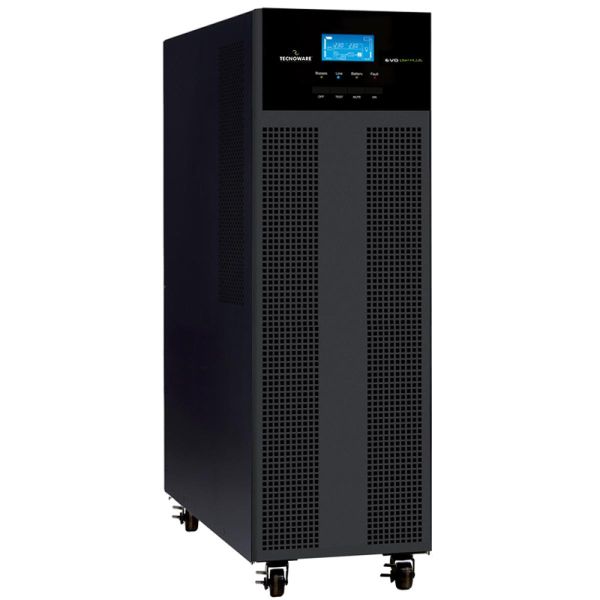

Tecnoware EVO DSP PLUS 6KVA Online UPS (PF 0.9) – FGCEVDP6MM2/00I - Made in Italy

The Tecnoware EVO DSP PLUS 6KVA UPS (FGCEVDP6MM2/00I) delivers continuous, high-quality power using On-Line Double Conversion (VFI-SS-111) technology. With a power factor of 0.9 and a peak efficiency of 94%, it ensures optimal performance for IT infrastructure, medical equipment, and sensitive electronics.

This transformerless UPS supports external battery boxes for extended backup and includes USB and RS232 communication ports along with an LCD graphic display for easy status monitoring and control. The unit also supports optional SNMP, MODBUS, and Dry Contact cards for network-based monitoring and integration.

Key Features

• Rated Power: 6 KVA / 5.4 KW

• Power Factor: 0.9

• Technology: On-Line Double Conversion (VFI-SS-111)

• Efficiency: 94% at full load

• Input Voltage Range: 110–300Vac (up to 50% load), 176–300Vac (50–100% load)

• Output Voltage: 208/220/230/240Vac

• Waveform: Pure Sinewave

• Transfer Time: 0 ms

• Crest Factor: 3:1

• Overload Handling:

  • Line Mode: 110% for 30 mins, 130% for 5 mins, >130% for 10 sec

  • Battery Mode: 110% for 3 mins, 130% for 30 sec, >130% for 10 sec

• Voltage THD: <3% (linear), <5% (non-linear)

• Frequency Stability: ±0.1 Hz

Battery

• Type: Sealed lead-acid, maintenance-free

• Battery Slots: Supports 16x external batteries (7.2Ah–11Ah)

• Extended Runtime: Supported via external battery box (optional)

• Battery Not Included

Management & Communication

• Display: Multifunction Graphic LCD

• Ports: USB, RS232

• Software: TecnoManager UPS control software (free)

• Emergency Shutdown: EPO Contact

• Expansion Slots: SNMP, Dry Contact, MODBUS (optional)

Physical Specifications

• UPS Dimensions (WxHxD): 19 × 68.8 × 36.9 cm

• Package Dimensions (WxHxD): 32 × 92.2 × 51.4 cm

• Weight: 18 kg

Environmental Parameters

• Operating Temp: 0°C to 55°C (ideal: 20–25°C)

• Humidity: < 95% RH (non-condensing)

• Altitude: Up to 3000 m

• IP Rating: IP20

• Audible Noise: < 55 dBA at 1m

Certifications

• CE Certified

• Compliance:

  • IEC EN 62040-1 (Low Voltage Directive)

  • IEC EN 62040-2 (EMC Directive)

  • IEC EN 62040-3 (UPS Classification)

Recommended For

• Network Infrastructure

• Server Rooms

• Industrial Automation

• Electromedical Systems

• Surveillance Systems
