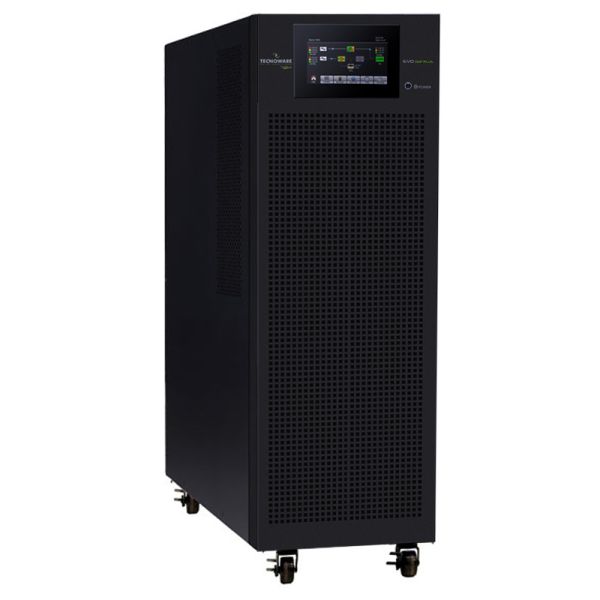

UPS EVO DSP PLUS TT 10KVA – PF 1 | 3-Phase In/Out | Without Batteries - Made in Italy

AED11,580.00

10KVA online double conversion UPS (VFI) with 3-phase input and output, power factor 1, 96% efficiency. Battery-ready with optional internal or external units.

Availability: In stock
SKU
FGCEDP10TT/00I

The UPS EVO DSP PLUS TT 10.0 delivers continuous and clean power with true online double conversion technology and a unity power factor (PF 1). Designed for high-load applications such as data centers, medical equipment, industry, and enterprise IT, it ensures complete protection against:

  • Blackouts

  • Overvoltage / undervoltage

  • Frequency shifts

  • Harmonics and voltage distortion

  • Surges and lightning (with upstream arresters)

Core Features:

  • 10KVA / 10KW Capacity

  • Three-phase input and output (400Vac)

  • Online Double Conversion VFI-SS-111 DSP-based

  • 96% efficiency

  • 0ms transfer time

  • Supports 20x 12V (7.2–11Ah) batteries (optional)

  • Hot-swappable battery-ready (internal/external box compatible)

  • Active PFC (0.99)

  • Static + manual bypass

  • Frequency converter mode

User Interface and Communication:

  • 10” LCD Touch Display

  • USB, RS232, and EPO ports

  • Intelligent slot for SNMP, MODBUS, or Dry Contact

  • Compatible with TecnoManager monitoring software (free)

Specs Snapshot:

  • Code: FGCEDP10TT/00

  • Size: 25x82.6x63 cm

  • Weight: 70 Kg

  • Cooling: Fan cooled

  • Protection Rating: IP20

  • Certifications: CE (EN 62040-1/2/3)

Environmental Tolerance:

  • Temperature: 0–55°C (optimal: 20–25°C)

  • Humidity: <95% (non-condensing)

  • Altitude: ≤3000m

Bulk Orders:
For bulk purchases, contact us at info@gepcomtech.com

Approximate Delivery Time : 3 Days

Datasheet
