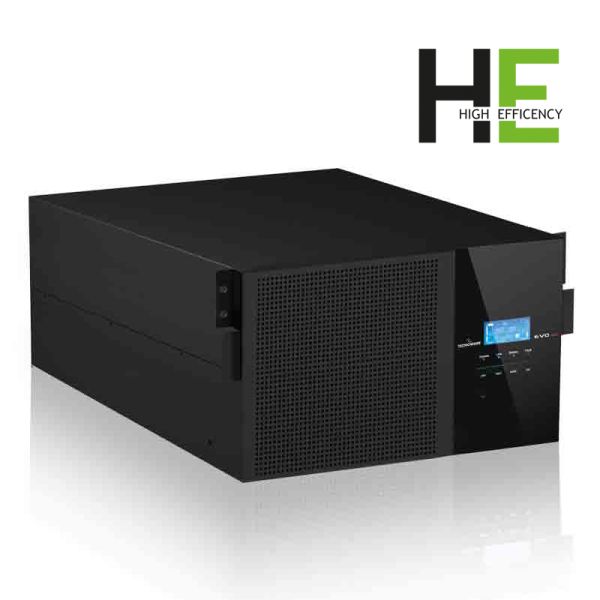

UPS EVO DSP 20KVA TM Rack Mount – PF 0.9 | VFI Online | Without Batteries - Made in Italy

The UPS EVO DSP TM Rack Mount 20.0 is a 20KVA professional-grade UPS designed for rack-mounted IT and industrial environments. Built on On-Line Double Conversion (VFI-SS-111) architecture, it offers continuous and regulated output with zero transfer time.

Key Performance Specs:

• Power Capacity: 20KVA / 18KW

• Power Factor: 0.9

• Input Voltage: Three-phase 400Vac

• Output Voltage: Single-phase 230Vac 50/60Hz

• Efficiency: Up to 94% in online mode

• Form Factor: 6U rack-mount (no internal batteries)

Core Features:

• VFI Transformerless Online Double Conversion for full isolation

• Total protection from:

  • Power failures

  • Surges and harmonics

  • Lightning (with upstream protection)

  • Frequency deviations

• Ideal for:

  • Data centers

  • Server rooms

  • Medical electronics

  • Industrial PLC and automation systems

Interface & Monitoring:

• LCD Graphic Display for real-time system insights

• USB + RS232 ports for communication and control

• EPO contact for emergency shutdown

• Intelligent Slot for optional:

  • SNMP

  • MODBUS

  • Dry Contact card

• Compatible with TecnoManager software for scheduling and remote UPS management

Power & Battery System:

• Battery not included

• Requires external battery boxes (see battery options)

• Static Bypass included

• Dual input: rectifier and single bypass

• Active PFC with 0.99 input power factor

• Generator compatible

Physical & Environmental Data:

• Dimensions: 43.8 x 26.6 x 66.8 cm (W x H x D)

• Weight: 47 Kg

• Cooling: Fan-cooled

• Operating Temp: 0°C to 55°C (20–25°C recommended)

• Humidity: <95% non-condensing

• Max Altitude: 3000 meters

• IP Rating: IP20

• Certifications: CE (IEC EN 62040-1, 62040-2, 62040-3)

Bulk Orders:
For bulk purchases, contact us at info@gepcomtech.com

Approximate Delivery Time : 3 Days

Datasheet
